製品詳細
起源の場所: 中国
ブランド名: Warom
証明: CCS,BV,ABS,IEC,IECEX,EX,GB(EX)
モデル番号: HRY51-G/C
支払及び船積みの言葉
パッケージの詳細: 紙箱/木箱のパッケージ
支払条件: T/T
Application: |
Widely used for the illumination on various marine platforms, chemical tankers, LNG ships, and other offshore structures in hazardous locations such as oil refineries, petrochemical plants, and chemical plants. |
Can reliably work: |
in severe environment exposed in moisture, vibration or corrosion |
Explosive hazardous atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Housing: |
Stretching formed 316L stainless steel, powder coated surface |
Cover: |
Cleat polycarbonate |
Data for light with emergency function: |
Single tube emergency, emergency lighting time ≥120 min |
Application: |
Widely used for the illumination on various marine platforms, chemical tankers, LNG ships, and other offshore structures in hazardous locations such as oil refineries, petrochemical plants, and chemical plants. |
Can reliably work: |
in severe environment exposed in moisture, vibration or corrosion |
Explosive hazardous atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Housing: |
Stretching formed 316L stainless steel, powder coated surface |
Cover: |
Cleat polycarbonate |
Data for light with emergency function: |
Single tube emergency, emergency lighting time ≥120 min |
| 技術パラメータ | |
| 基準の適合性 | IEC60079, EN60079, GB/T 3836, CCS 規格 |
| 環境温度 | -40°C~+53°C/58°C |
| 光源 | 防爆LEDチューブ |
| 保護程度 | IP66/IP67 |
| 耐腐食性 | WF2 |
| ケーブル入口 | 2×M25×15Φ12.5~Φ20.5mmケーブルに適しています |
| ターミナル | 1.5~4mm2 |

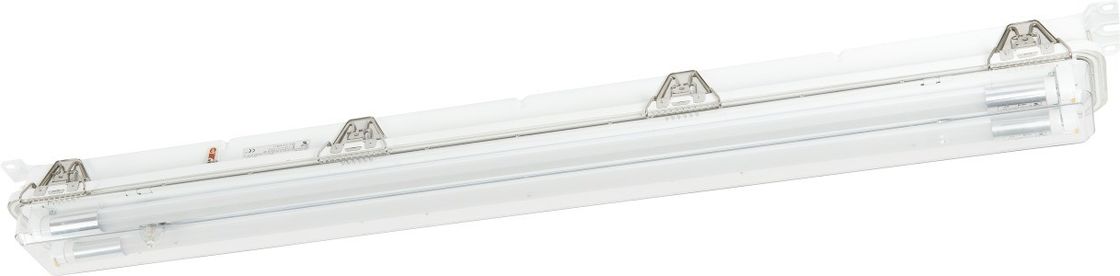

HRY51-G/C 防爆ペンダントライト
(ダウンロードはこちら:HRY51-G/C 防爆ペンダントライト.pdf)
詳細については,こちらからお問い合わせください.
